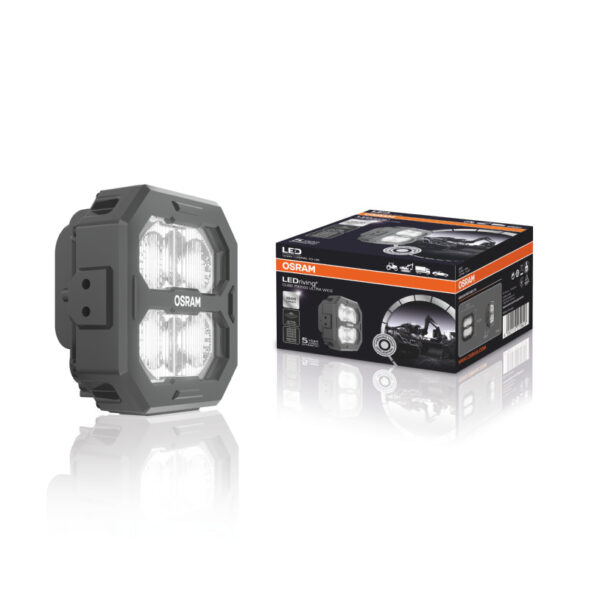

LEDriving® Cube PX1500 Ultra Wide – Professional light 1 piece OSRAM

Light is individual

The headlights are suitable for 12V as well as 24V vehicles and there are a total of four beam characteristics

• Flood
• Spot
• Wide
• Ultra-Wide

as well as 4 power levels< /p>

• 1500 lm
• 2500 lm
• 3500 lm
• 4500 lm

available for each luminaire. In addition, they can be mounted in 3 different ways:

• Direct mounting
• flexible standard mounting
• Heavy-duty mounting

Here, too, OSRAM has specially designed brackets and also a cable DT connector developed. Simply put together, adapt, combine and, if necessary, simply exchange them with each other.

• ULTRA WIDE BEAM = beam characteristics for a particularly large and particularly wide light distribution
• Four power levels can be selected for each beam characteristic: 1500lm, 2500lm, 3500lm & 4500lm
• In combination: coverage of close, medium and Far-field illumination
• Bright white light with 6000K
• Highest protection class: IP6K8 & IP6K9K
• Over- and undervoltage protection
• CISPR25 class 3/5, certification: ECE R10
• Die-cast aluminum housing with special black coating
• Three mounting options: Standard/Flexible, Heavy Duty Mount and Direct Mount
• For 12V & 24V vehicles
• Efficient reflector lens design with powerful OSRAM LEDs
• Compact and robust – shatterproof polycarbonate lens
• 5-year OSRAM guarantee, made in Europe

You can find out more at: ULTRA WIDE BEAM
